MANUFACTURING EXCELLENCE

From Fibre to Finished Fabric.
Three Decades of Mechanical Mastery.

Step inside our four Jaipur manufacturing facilities to understand how traditional Rajasthani wool pressing has been elevated into high-precision industrial production with automated steam fulling and multi-ton hydraulic compaction.

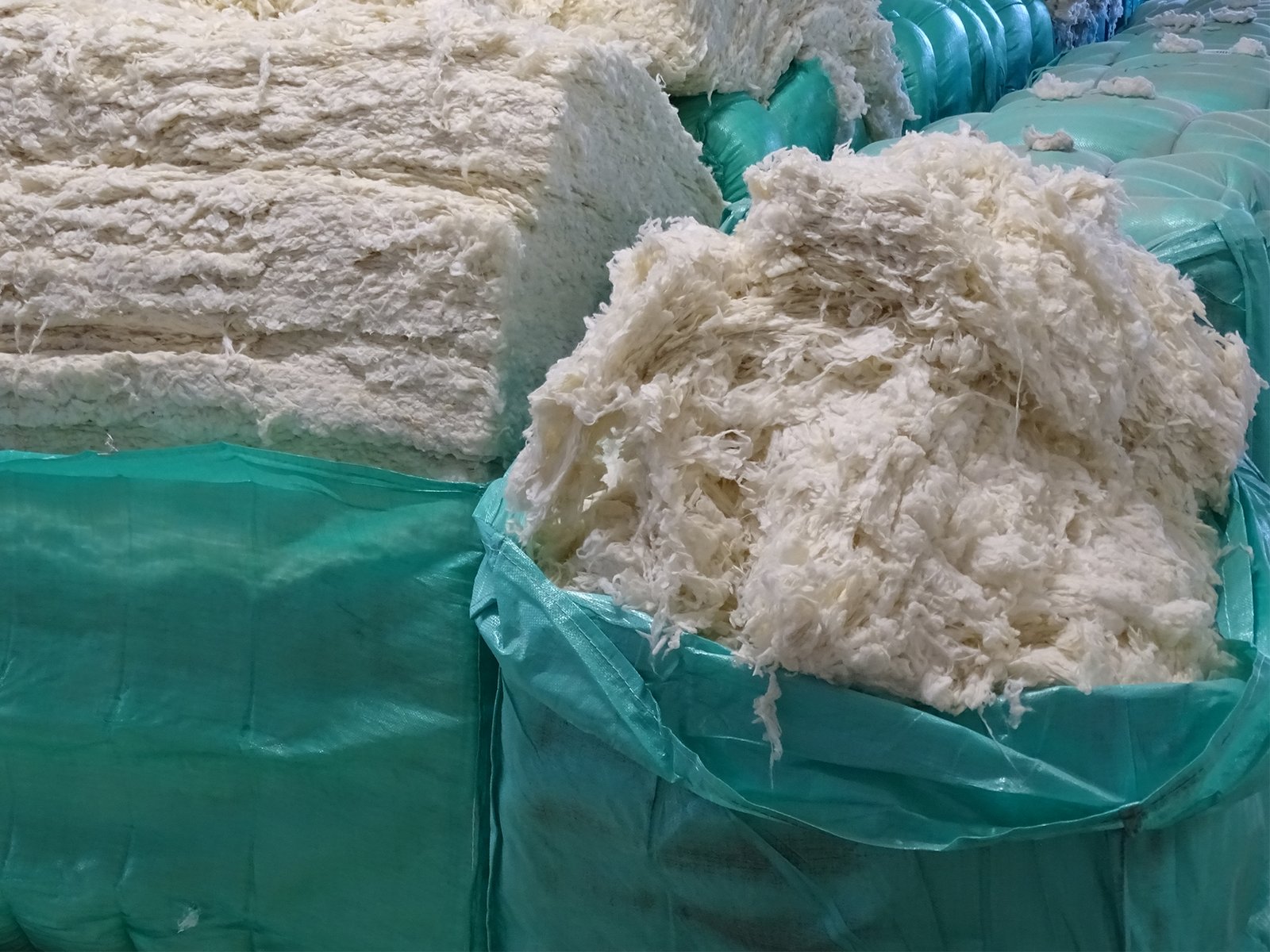

100% Virgin Sheep Wool Sourcing
STAGE 01
RAW FIBER SELECTION

100% Virgin Sheep Wool Sourcing

Every production batch begins with high-grade virgin sheep wool selected for natural elasticity, fiber crimp, and micron uniformity. We never blend low-grade synthetic scrap into our industrial wool felts.

Micron Range
21μm – 29μm
Staple Length
65mm – 95mm
Fiber Purity
100% Natural Wool
Eco-Washing & Multi-Cylinder Carding
STAGE 02
SCOURING & CARDING

Eco-Washing & Multi-Cylinder Carding

Raw fleece is scoured with eco-friendly bio-detergents in continuous hot water vats to remove natural grease and dust. High-speed revolving wire cylinders then align the fibers into a light, uniform webbed fleece layer.

Cylinder Speed
750 RPM
Vegetal Removal
> 99.4% Cleanliness
Web Uniformity
Cross-Lapped

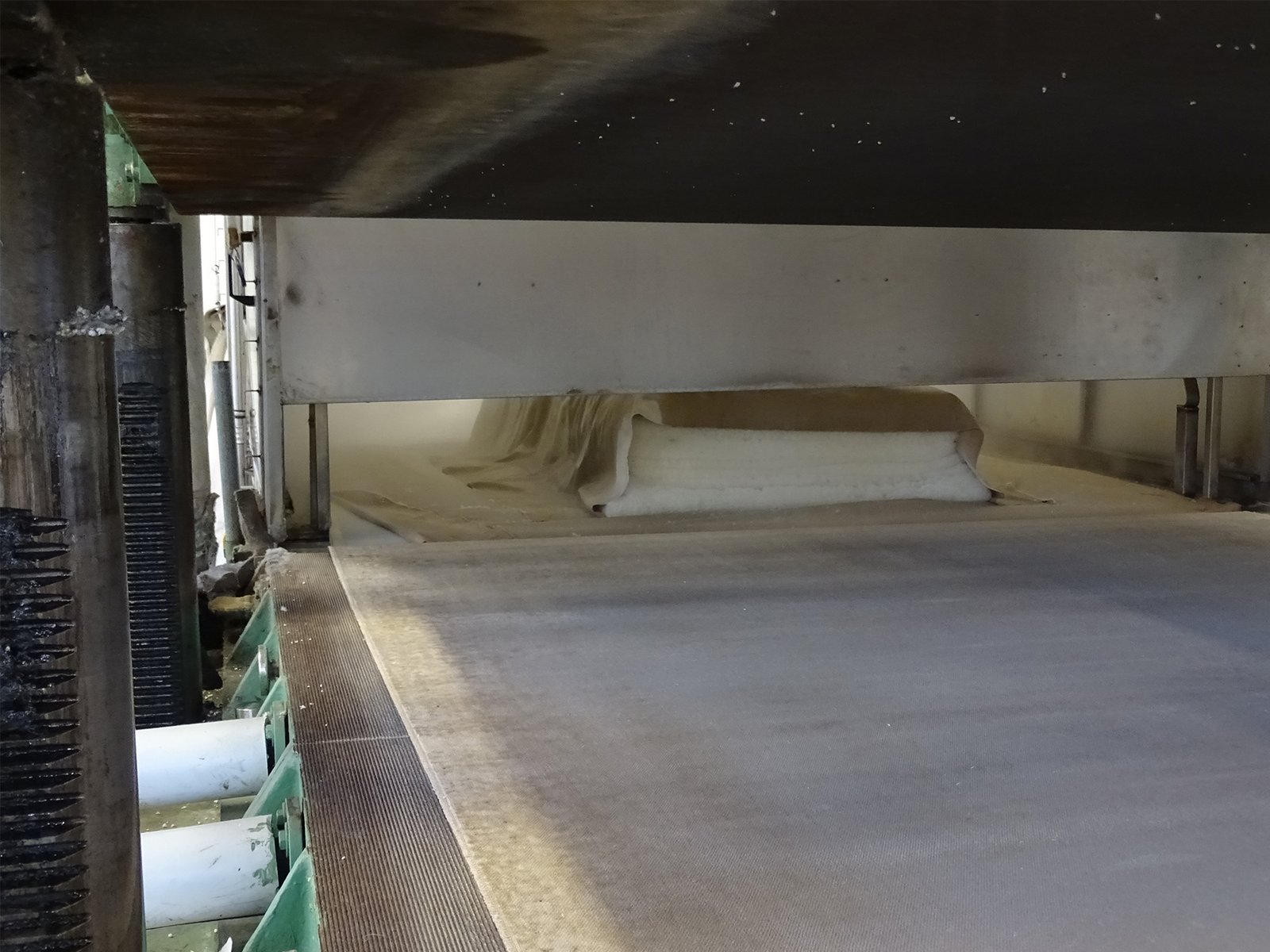

Oscillating Steam Fulling & Hardening
STAGE 03
FELTING & HARDENING

Oscillating Steam Fulling & Hardening

Cross-lapped fleece layers are exposed to pressurized steam and oscillating heavy plates. The heat and friction cause microscopic wool cuticles to interlock permanently, forming a cohesive non-woven sheet without chemical binders.

Steam Pressure
4.5 Bar
Temperature
105°C Controlled
Bonding Type
Pure Mechanical Scale Lock
High-Tonnage Hydraulic Compaction
STAGE 04
HYDRAULIC PRESSING

High-Tonnage Hydraulic Compaction

The continuous felt web enters multi-ton hydraulic presses to achieve calibrated density grades from soft cushioning (0.18 g/cm³) to rock-hard buffing density (0.45 g/cm³). Controlled drying chambers lock the sheet dimensions.

Press Tonnage
Up to 500 Tons
Thickness Range
1.5mm to 30mm
Density Tolerance
± 0.01 g/cm³
Precision Die-Cutting & Slitting
STAGE 05
CONVERTING & STAMPING

Precision Die-Cutting & Slitting

Automated rotary slitters cut rolls to widths as narrow as 10mm. High-speed eccentric stamping presses with 100+ precision dies punch intricate gaskets, washers, rings, and pads with laser-guided edge accuracy.

Die Accuracy
± 0.2mm
Slit Widths
10mm to 2000mm
Edge Quality
Clean Non-Fraying
Quality Testing & Protective Packaging
STAGE 06
LAB AUDIT & DISPATCH

Quality Testing & Protective Packaging

Before release, production lots are audited for thickness, density, tensile strength, and oil absorption in our testing lab. Products are vacuum-sealed with moisture barriers and packaged in heavy-duty protective crates.

Compliance
DIN 61200 / ASTM F-104
Moisture Seal
Vacuum Poly Bagged
Logistics
Pan-India Direct Dispatch
INFRASTRUCTURE & CAPACITY

4 Dedicated Plants. 1 Ton Daily Output.

Our multi-unit Jaipur manufacturing campus is equipped with heavy steam boilers, rotary slitters, CNC gasket cutting tables, and automated packaging lines to handle high-volume manufacturing contracts reliably.

EXPLORE OUR 4 JAIPUR FACILITIES →
4 Units
Jaipur Production Campus
100+
Precision Stamping Dies
±0.2mm
Stamping Accuracy
100%
Quality Batch Traceable
